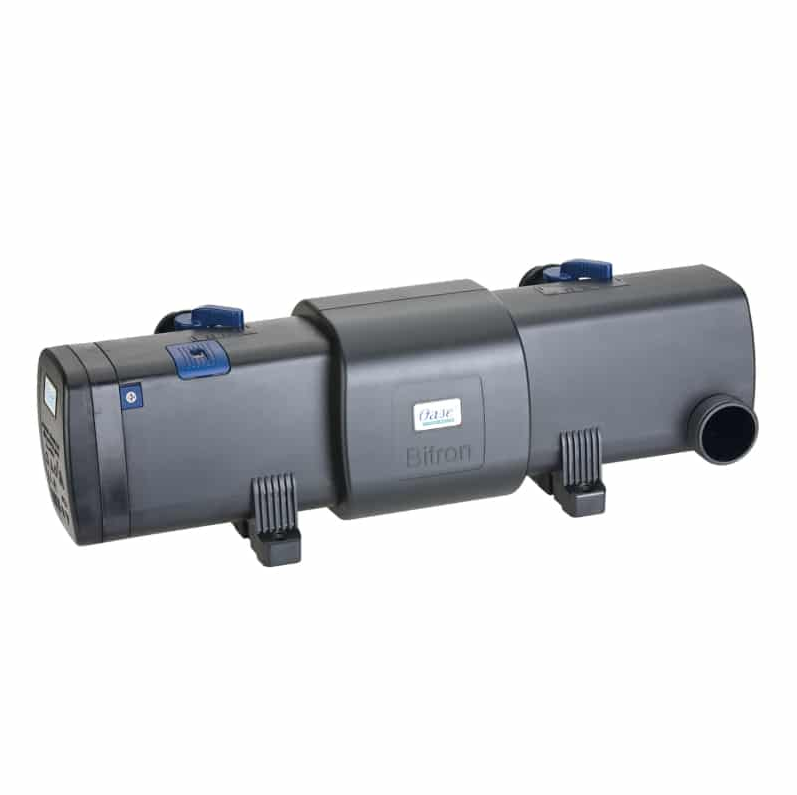

Oase Bitron 55 w UV Clarifier



• SELF-CLEANING: Highly effective UV radiation at all times thanks to patented, independent lamp cleaning

• QUICK-RELEASE CLOSURE: For easy opening of the lamp housing. To protect against eye damage, a safety switch automatically deactivates the UVC lamp

• WELL PROTECTED: 100% protection against eye damage

• AUTOMATIC: Due to the water flow, the cleaning rotor is continuously and automatically guided around the quartz glass tube and thus prevents dirt deposits

• INCLUDED: High-quality UVC lights

• QUALITY: High-quality design with impact-resistant plastic

• EYE-CATCHING: Visual function check of the UVC light

• GUARANTEED: Includes OASE clear water guarantee (in conjunction with the OASE flow-through filters BioSmart, BioTec and ProfiClear)

• INTEGRATED: Magnets for protecting the filter equipment from lime deposits

• SYNCHRONOUS: Individual regulation of the water flow rate allows you to optimally tune the Bitron C to the connected filter pump



The OASE Bitron C 55 W UVC pre-clarifier eliminates floating algae and reduces harmful bacteria for healthy and clear water. An automatic cleaning system ensures fully effective UVC radiation at all times. A control window provides additional functional safety. Eye protection guaranteed by 100% VDE-tested safety. With a power consumption of 55 watts, 6,500 l/h can flow past the UVC tube without a bypass. The flow rate can be individually adjusted and regulated. The OASE Bitron C 55 W UVC pre-clarifier is available complete with universal stepped hose nozzle from ¾" (19 mm) to 2" (51 mm). The cable is 5 m long. A flow nozzle optimises the flow to the cleaning rotor. The nominal voltage is 230 V/50 Hz. Ideal for connection to BioSmart 36000 and BioTec Screenmatic 12-18 and comes with a 2-year guarantee with manufacturer.



Dimensions (L x W x H)	mm	600 x 180 x 198
Rated voltage		220 - 240 V / 50/60 Hz
Power consumption	W	55
Power cable length	m	5.00
Net weight	kg	4.03
Limited Warranty	Years	2
UVC power	W	55
Temperature display		No
UVC Bypass		manually
UVC operating hours meter		No
Function check		Visual
Number of inlets	Units	1
Inlet connections	mm	19 / 25 / 32 / 38 / 50
Inlet connections		¾", 1", 1 ¼", 1 ½", 2"
Number of outlets	Units	2
Connections, outlet	mm	25 / 32 / 38
Outlet connections		1", 1 ¼", 1 ½"
Min. flow rate	l/h	8000
Max. flow rate	l/h	30000
Max. operating pressure	bar	0.5
Suitable for ponds up to max.	m3	60.0
Suitable for ponds with fish stock	m3	30.0
Suitable for ponds with koi	m3	15.0
Connection to		BioSmart 18000/36000, BioTec ScreenMatic2 40 - 60000



Article Number  56823
