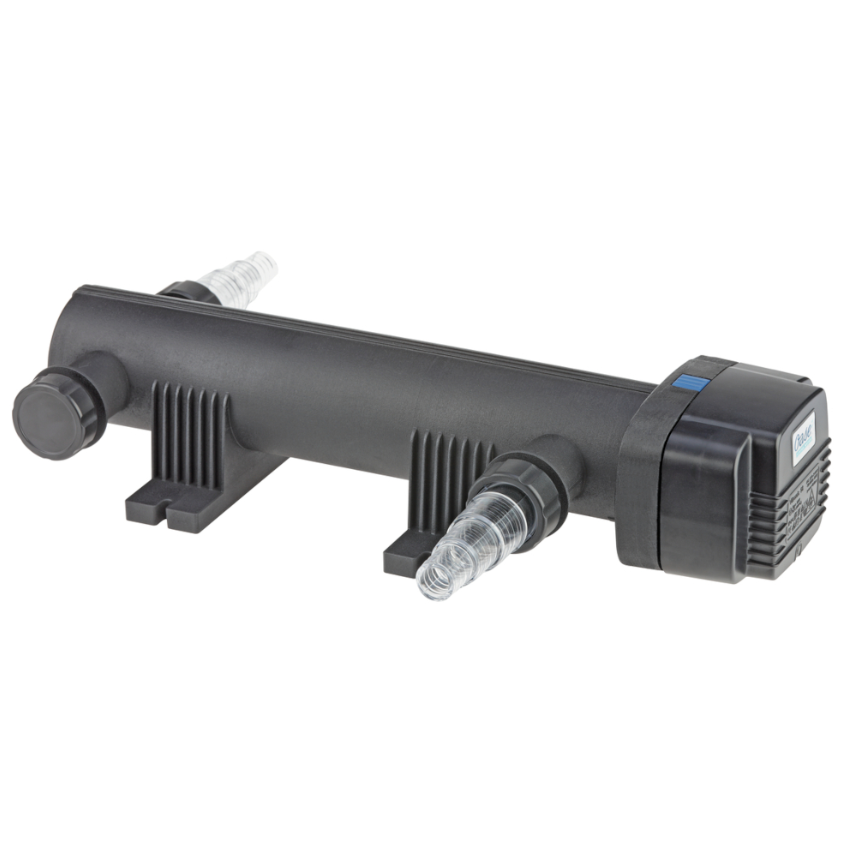

Oase Vitronic 36 w UV Clarifier



• GREATER CLARITY: UVC radiation destroys the cell structure of floating algae and thus effectively prevents growth


• THREE INPUTS: Individual options for attaching to a variety of OASE filter models (e.g. BioSmart), but also to filters from other manufacturers


• EASY INSTALLATION: Simply attach the clarifier to the connecting hose between the pond pump and the filter



The UVC pre-clarifier is suitable for pump capacities up to max. 11500 l/h, eliminates floating algae, reduces harmful bacteria and thus ensures clear water. Now brand new: Simple installation directly on the BioSmart and BioTec filters! The device has an optical function control, a power consumption of 36 watts, bypass technology, 1" (25 mm) to 1 ½" (38 mm) universal stepped hose nozzles, a cable length of 5 m and a rated voltage of 220-240 V/50-60 Hz. Quartz glass cleaning and bulb replacement are particularly easy thanks to the quick-release fastener technology. The guarantee is 2 years.



Dimensions (L x W x H)	mm	529 x 186 x 130
Rated voltage		220 - 240 V / 50/60 Hz
Power consumption	W	36
Power cable length	m	5.00
Net weight	kg	2.28
Limited Warranty	Years	2
UVC power	W	36
Temperature display		No
UVC operating hours meter		No
Function check		Visual
Number of inlets	Units	1
Inlet connections	mm	25 / 32 / 38
Inlet connections		1", 1 ¼", 1 ½"
Number of outlets	Units	2
Connections, outlet	mm	25 / 32 / 38
Outlet connections		1", 1 ¼", 1 ½"
Max. flow rate	l/h	6000
Max. operating pressure	bar	0.6
Suitable for ponds up to max.	m3	40.0
Suitable for ponds with fish stock	m3	20.0
Suitable for ponds with koi	m3	10.0
Connection to		BioSmart 18000/36000, BioTec ScreenMatic2 40 - 6000



Article Number 56885
