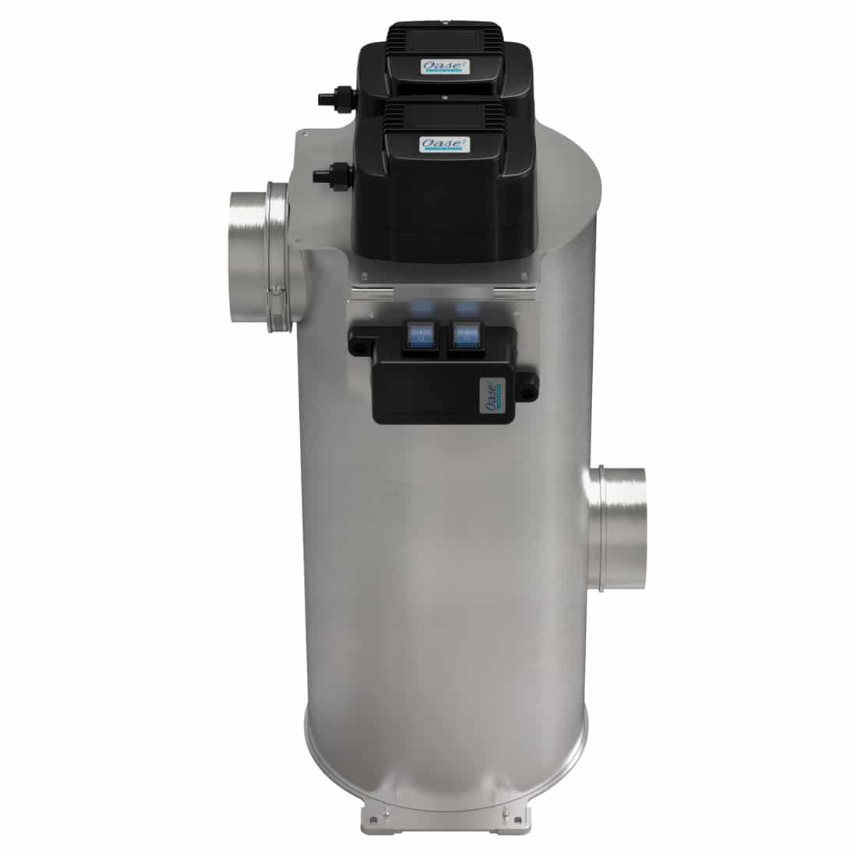

Oase Bitron Premium 120 w UV Clarifier

• CLEARS EVERYTHING UP: Extremely effective elimination of algae and pathogenic bacteria; works in the same way as an immersion UVC

• WELL PROTECTED: 100% protection against eye damage

• HIGHLY EFFECTIVE: Exceptionally effective sterilisation thanks to the extra-long retention time of the water in the Bitron

• PERFECTED: The flow-optimised reactor design ensures direct and almost loss-free UV radiation

• GUARANTEED: Clear water guarantee when used in conjunction with OASE ProfiClear filters

• YOU CHOOSE: Horizontal or vertical installation

• FLEXIBLE: Can be connected either upstream or downstream of the ProfiClear filter system – also applies to other gravity-fed applications

• EXPANDABLE: In the event of pond enlargements or increase in fish stock, expansion with additional Bitron Premium UVC devices is no problem

• CHECK: Visual function check

• SIMPLE: Particularly straightforward installation using stainless steel fasteners

• YOU CHOOSE: Depending on the requirements, the lamps of the Bitron Premium 120 W and 180 W can be switched on individually



The highly efficient UVC pre-treatment devices in the Bitron Premium range are suitable for ponds up to 185 m³ and provide extremely powerful removal of algae and pathogenic bacteria – with the same mode of action as an immersion UVC. It offers 100 % safety against eye damage, is particularly energy-efficient thanks to an electronic ballast and is exceptionally effective in sterilisation thanks to the long retention time of the water in the Bitron. The flow-optimised reactor design ensures direct and virtually loss-free UV irradiation.



Dimensions (L x W x H)	mm	700 x 387 x 305
Rated voltage		220 - 240 V / 50/60 Hz
Power consumption	W	120
Power cable length	m	7.00
Net weight	kg	13.10
Limited Warranty	Years	2
UVC power	W	120
UVC operating hours meter		No
Function check		Visual
Number of inlets	Units	1
Inlet connections		DN 110
Number of outlets	Units	1
Outlet connections		DN 110
Max. flow rate	l/h	70000
Max. operating pressure	bar	0.6
Rec. flow rate (gravity-fed)	l/h	33000
Suitable for ponds up to max.	m3	185.0
Suitable for ponds with fish stock	m3	100.0
Suitable for ponds with koi	m3	66.0
Material		Plastic / stainless steel
Connection to		AquaMax, ProfiClear
Type of use		Gravity fed system, Pump fed system



Article Number 73375
