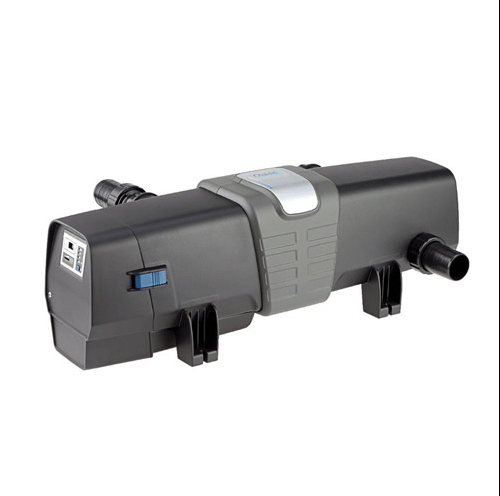

Oase Bitron Eco 240 UV Clarifier

• FEASIBLE: Easy connection to other 2" filter systems


• NEW: Large-volume UVC housing with new design and organic shape, for a particularly long retention time and treatment of the water


• BYPASS: The integrated bypass membrane regulates the water distribution fully automatically based on the water flow and adapts to changing conditions such as the Seasonal Flow Control System


• AUTOMATIC: The control unit not only automatically shows you the current status of your lamps and the water temperature, it also allows you to adjust the output according to your needs


• GUARANTEED: Includes OASE clear water guarantee (in conjunction with the OASE flow-through filters BioSmart, BioTec and ProfiClear)


• CLIMATE PROTECTION: Eco mode saves up to 525 kg CO2/year*2


• UP TO 50 PERCENT LESS: The eco control system enables maximum energy efficiency with such a high savings potential


• ANY TIME: Fully effective UVC radiation thanks to patented automatic cleaning of the UV lamp


• EFFECTIVE: Highly intensive treatment of suspended algae, turbidity and harmful bacteria in pond water


• WELL PROTECTED: 100% protection against eye damage



The Bitron Eco 240 UVC pre-clarifier treats suspended algae, turbidity and harmful bacteria in the pond water with high intensity. The Eco control enables energy savings of up to 50%. Thanks to the 50% longer service life of the UVC lamp, lamp costs are reduced. The intelligent bypass control allows up to 50000 l/h to flow past the UVC tube at 180 watts of power. Including proven automatic cleaning, control function and display for lamp change and water temperature. Can be installed directly on the pond thanks to its IP68 protection rating. The cable length is 5 m, the rated voltage 220 – 240/50 Hz. The Bitron Eco enables a 1 ½" and 2" connection. Ideal for connection to ProfiClear, BioTec 30, BioTec SreenMatic 36. You receive a 2-year guarantee + 1-year request guarantee.



Dimensions (L x W x H)	mm	725 x 227 x 248
Rated voltage		220 - 240 V / 50/60 Hz
Power consumption	W	240
Power cable length	m	5.00
Net weight	kg	8.45
Limited Warranty	Years	2 + 1
UVC power	W	240
Temperature display		Digital
UVC Bypass		automatic
UVC operating hours meter		12000 h
Function check		LED
Number of inlets	Units	1
Inlet connections	mm	38 / 50
Inlet connections		1 ½", 2"
Number of outlets	Units	1
Connections, outlet	mm	38 / 50
Outlet connections		1 ½", 2"
Min. flow rate	l/h	10000
Max. flow rate	l/h	50000
Max. operating pressure	bar	1
Suitable for ponds up to max.	m3	240.0
Suitable for ponds with fish stock	m3	120.0
Suitable for ponds with koi	m3	60.0
Connection to		BioTec 30, BioTec ScreenMatic2 145000, ProfiClear



Article Number 56410
