Oase Flowthrough Filter System Biotec Screenmatic 90000



• GUARANTEED: Includes OASE clear water guarantee


• LOW MAINTENANCE: Coarse dirt is removed before it enters the filter


• SELF-CLEANING: The filter belt is automatically driven; adjustable automatic cleaning system, which controls the belt run based on the degree of contamination, including LED function check


• CONVENIENT: Filter sponges can be cleaned directly in the filter


• CLEAN AND TIDY: Bottom drain with slide to remove dirt from the filter system


• SMART COMBO: Different filter media for optimal development of filter biology


• EXTRA FOR THREAD ALGAE: Use of PhosLess filter cartridges for reducing thread algae (optional accessory)


• SUITABLE PUMPS: Optimally matched to OASE AquaMax Eco filter pumps


• GOOD PARTNERS: Direct connection option for UVC Bitron C and Eco clarifiers


• DOESN'T CLOG: Uniform water distribution on the filter belt


• PRACTICAL: Large-volume dirt basket with easy cleaning

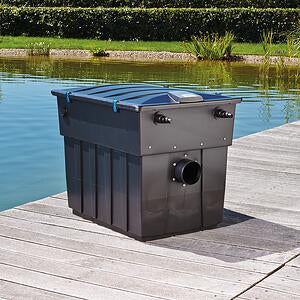

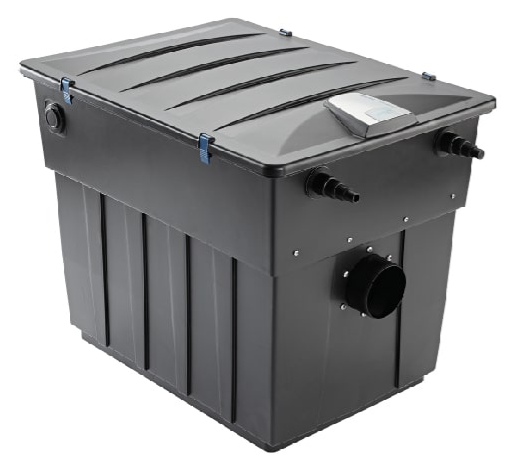

The BioTec ScreenMatic² 90000 flow-through filter supplements the BioTec ScreenMatic² product range (40000, 60000, 90000, 145000) with an intermediate size (788 x 590 x 645 mm). Guarantees excellent cleaning results for ponds up to 45 m³ with fish stocking. The inlet and return (DN110) are located on one side for easy handling. Long service life thanks to automatic coarse dirt separation before entering the filter. The filter belt cleans itself automatically. Also available as a complete set with AquaMax Eco Premium 20000 and Bitron C 110 W. 2-year guarantee + 1-year request guarantee.



Dimensions filter (L x W x H)	mm	788 x 590 x 645
Net weight	kg	27.00
Rated voltage (primary, secondary)		230 V / 50 Hz, 12 V / AC
Power consumption	W	5
Cable length 12 V device (with power unit)	m	2.10 (Power unit) + 5.00
Guarantee (+ request guarantee)	Years	2 + 1
Number of filter foams, total	Units	16
Number of blue filter foams	Units	4
Number of red filter foams	Units	6
Number of purple filter foams	Units	6
Special filter granulate	kg	5.00
Temperature display		No
Coarse debris extraction	µm	300
Connection inlet filter	mm	25 / 38 / 50
Connection inlet filter		1", 1 ¼", 1 ½"
Connections, outlet filter		2", DN 110
Sludge discharge connections		DN 50
Max. flow rate	l/h	12500
Suitable for ponds up to max.	m3	90.0
Suitable for ponds with fish stock	m3	45.0
Suitable for ponds with koi	m3	22.5
Connection to		Bitron C 36 - 110 W, Bitron Eco 120 - 240 W



Article number    46178
