Oase Flowthrough Filter System Biotec Screenmatic 40000



• GUARANTEED: Includes OASE clear water guarantee


• LOW MAINTENANCE: Coarse dirt is removed before it enters the filter


• SELF-CLEANING: The filter belt is automatically driven; adjustable automatic cleaning system, which controls the belt run based on the degree of contamination, including LED function check


• CONVENIENT: Filter sponges can be cleaned directly in the filter


• CLEAN AND TIDY: Bottom drain with slide to remove dirt from the filter system


• SMART COMBO: Different filter media for optimal development of filter biology


• EXTRA FOR THREAD ALGAE: Use of PhosLess filter cartridges for reducing thread algae (optional accessory)


• SUITABLE PUMPS: Optimally matched to OASE AquaMax Eco filter pumps


• GOOD PARTNERS: Direct connection option for UVC Bitron C and Eco clarifiers


• DOESN'T CLOG: Uniform water distribution on the filter belt

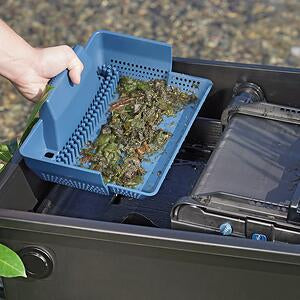

• PRACTICAL: Large-volume dirt basket with easy cleaning



A cleverly improved high-performance filter: The double motor seal extends the service life. The adjustable automatic cleaning system improves the separation result. A water distributor without bottlenecks prevents blockages. Innovative dirt barriers prevent the filter from being washed out. The raised total water level allows the filter capacity to be fully utilised. The new design reinforces the construction, increases the intake volume and facilitates dirt removal.



Dimensions filter (L x W x H)	mm	788 x 590 x 445
Net weight	kg	20.00
Rated voltage (primary, secondary)		230 V / 50 Hz, 12 V / AC
Power consumption	W	5
Cable length 12 V device (with power unit)	m	2.10 (Power unit) + 5.00
Guarantee (+ request guarantee)	Years	2 + 1
Number of filter foams, total	Units	8
Number of blue filter foams	Units	2
Number of red filter foams	Units	3
Number of purple filter foams	Units	3
Special filter granulate	kg	2.50
Temperature display		No
Coarse debris extraction	µm	300
Connection inlet filter	mm	25 / 32 / 38
Connection inlet filter		1", 1 ¼", 1 ½"
Connections, outlet filter		DA 75
Sludge discharge connections		DN 50
Max. flow rate	l/h	9000
Suitable for ponds up to max.	m3	40.0
Suitable for ponds with fish stock	m3	20.0
Suitable for ponds with koi	m3	10.0
Connection to		Bitron C 36 - 110 W, Bitron Eco 120 - 240 W



Article number 57694
