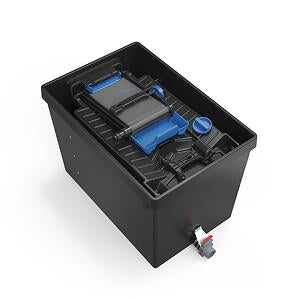

Oase Flowthrough Filter System Biotec Screenmatic 145000



• GUARANTEED: Includes OASE clear water guarantee


• LOW MAINTENANCE: Coarse dirt is removed before it enters the filter


• SELF-CLEANING: The filter belt is automatically driven; adjustable automatic cleaning system, which controls the belt run based on the degree of contamination, including LED function check


• CONVENIENT: Filter sponges can be cleaned directly in the filter


• CLEAN AND TIDY: Bottom drain with slide to remove dirt from the filter system


• SMART COMBO: Different filter media for optimal development of filter biology


• EXTRA FOR THREAD ALGAE: Use of PhosLess filter cartridges for reducing thread algae (optional accessory)


• SUITABLE PUMPS: Optimally matched to OASE AquaMax Eco filter pumps


• GOOD PARTNERS: Direct connection option for UVC Bitron C and Eco clarifiers


• DOESN'T CLOG: Uniform water distribution on the filter belt


• PRACTICAL: Large-volume dirt basket with easy cleaning



The BioTec ScreenMatic² 145000 flow-through filter adds a new size to the BioTec ScreenMatic² product range (40000, 60000, 90000, 145000). Guarantees excellent cleaning results. Easy handling and long service life thanks to automatic coarse dirt separation before entering the filter. The filter belt cleans itself automatically. 2-year guarantee + 1-year request guarantee.



Dimensions filter (L x W x H)	mm	1334 x 891 x 815
Net weight	kg	110.00
Rated voltage (primary, secondary)		230 V / 50 Hz, 12 V / AC
Power consumption	W	5
Guarantee (+ request guarantee)	Years	2 + 1
Guarantee UVC	Years	2

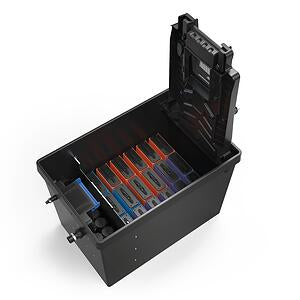

Number of filter foams, total	Units	18
Number of blue filter foams	Units	4
Number of red filter foams	Units	7
Number of purple filter foams	Units	7
Special filter granulate	kg	14.50
Temperature display		No
Coarse debris extraction	µm	300
Connection inlet filter	mm	25 / 38 / 50
Connection inlet filter		1", 1 ¼", 1 ½"
Connections, outlet filter		2", DA 110
Sludge discharge connections		DN 75
Max. flow rate	l/h	17500
Suitable for ponds up to max.	m3	145.0
Suitable for ponds with fish stock	m3	72.0
Suitable for ponds with koi	m3	36.0
Connection to		Bitron C 36 - 110 W, Bitron Eco 120 - 240 W
