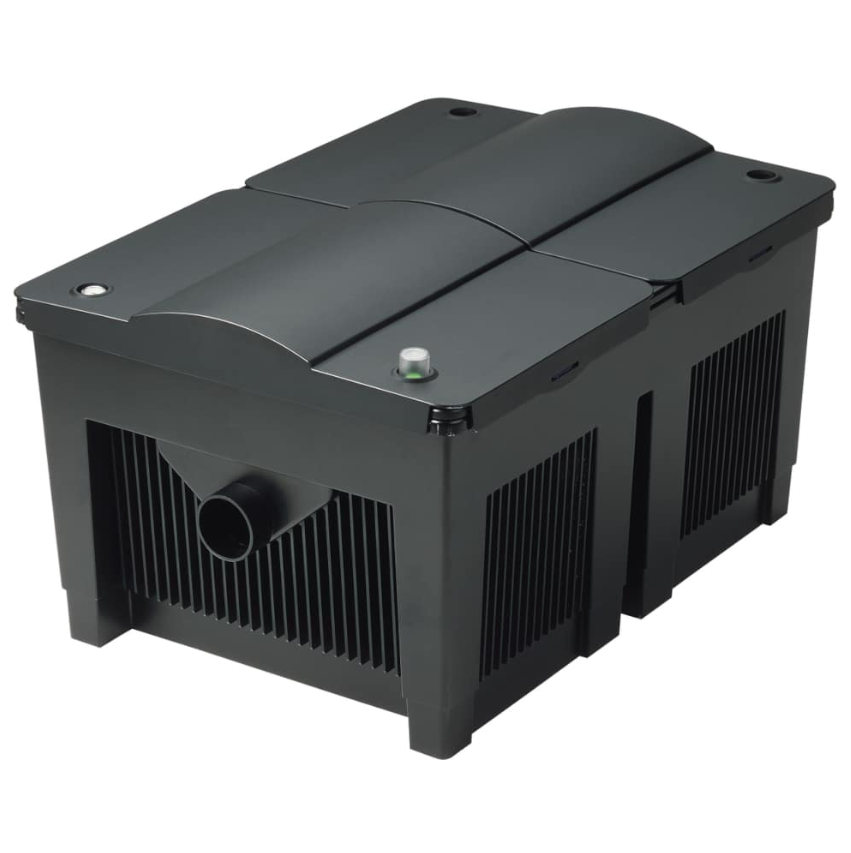

Oase Flowthrough Filter System Biosmart 36000 ( Biotec 10.1 )



• FISH-FRIENDLY: Additional oxygen enrichment through special water supply


• PERFECT FIT!: Optimally adapted to the OASE AquaMax filter and watercourse pumps


• BENEFIT: Easy to hide, since the filter housing can be buried to ⅓ of its height


• ALL CLEAR!: Guarantees clear pond water by combining mechanical/biological cleaning with effective UVC technology (BioSmart UVC 16000)


• INCLUDED: Displays showing the degree of soiling and water temperature



The mechanical-biological flow-through filter (770 mm long, 555 mm wide, 405 mm high) for ponds up to 36 m³ in size and up to 18 m³ when stocked with fish. The maximum flow rate is 8,000 l/h. The BioSmart 36000 has 2 inlets with a universal stepped hose nozzle from 1" to 1½", a DN 75 outlet, 4 blue, 4 red filter sponges and 1 green filter sponge, suspended, a cleaning lever for cleaning the filter sponges, a rinse connection and a floor drain. It offers connection options for Bitron C 24 and 36 W, as well as Vitronic 18-36 W. The guarantee is 3 years.



Dimensions filter (L x W x H)	mm	382 x 555 x 408
Net weight	kg	10.50
Limited Warranty	Years	3
Number of filter foams, total	Units	9
Number of blue filter foams	Units	4
Number of red filter foams	Units	4
Number of green filter foams	Units	1
Temperature display		Yes
Inlet connections	mm	25 / 32 / 38
Inlet connections		1", 1 ¼", 1 ½"
Outlet connections		DN 75
Sludge discharge connections		DN 50
Max. flow rate	l/h	8000
Suitable for ponds up to max.	m3	36.0
Suitable for ponds with fish stock	m3	18.0
Suitable for ponds with koi	m3	9.0



Article number    56641
