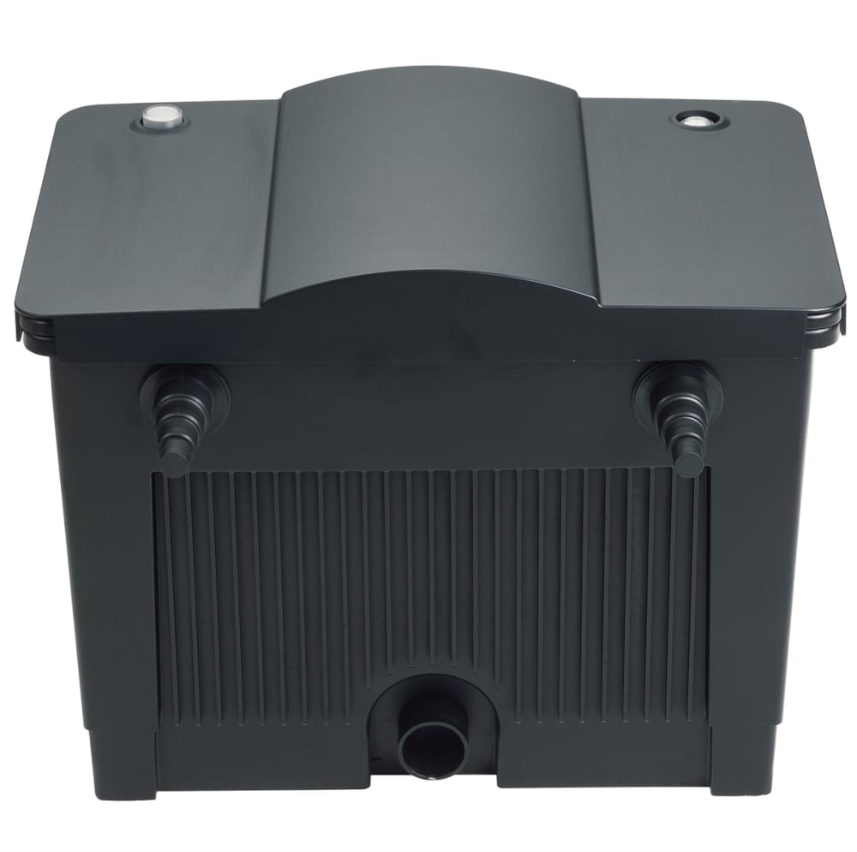

Oase Flowthrough Filter System Biosmart 18000 ( Biotec 5.1 )



• FISH-FRIENDLY: Additional oxygen enrichment through special water supply


• PERFECT FIT!: Optimally adapted to the OASE AquaMax filter and watercourse pumps


• BENEFIT: Easy to hide, since the filter housing can be buried to ⅓ of its height


• ALL CLEAR!: Guarantees clear pond water by combining mechanical/biological cleaning with effective UVC technology (BioSmart UVC 16000)


• INCLUDED: Displays showing the degree of soiling and water temperature



The mechanical-biological flow-through filter (382 mm long, 555 mm wide, 408 mm high) for ponds up to 18 m³ in size and up to 9 m³ when stocked with fish. The maximum flow rate is 5500 l/h. The BioSmart 18000 has 2 inlets with a universal stepped hose nozzle from 1" (25 mm) to 1½" (38 mm), a DN 75 outlet, 2 blue filter sponges as well as 1 red and 1 green filter sponge, suspended, a cleaning lever for cleaning the filter sponges, a rinse connection and a floor drain. It offers connection options for Bitron C 24 and 36 W as well as Vitronic 18 to 36 watts. The guarantee is 3 years.



Dimensions filter (L x W x H)	mm	382 x 555 x 408
Net weight	kg	5.50
Limited Warranty	Years	3
Number of filter foams, total	Units	4
Number of blue filter foams	Units	2
Number of red filter foams	Units	1
Number of green filter foams	Units	1
Temperature display		Yes
Inlet connections	mm	25 / 32 / 38
Inlet connections		1", 1 ¼", 1 ½"
Outlet connections		DN 75
Sludge discharge connections		DN 50
Max. flow rate	l/h	5500
Suitable for ponds up to max.	m3	18.0
Suitable for ponds with fish stock	m3	9.0
Suitable for ponds with koi	m3	4.5



Article number 56776
