Oase Biosmart Set 14000

• Incl. OASE Clear Water Guarantee
• Oxygen enrichment through special water channelling
• Cleaning handles for convenient maintenance
• Including displays for pollutant level and water temperature
• Sludge drain for easy removal of coarse debris
• Easy to conceal; the filter can be recessed into the ground to ⅓ of its height

• Suitable for ponds up to 14.0 m3

• Included in the scope of delivery: 3 m 3/4" (19 mm) hose and filter pump 3500: 70 W; 3400 l/h Qmax; 2.7 m Hmax
• Combination of mechanical biological cleaning and effective UVC technology

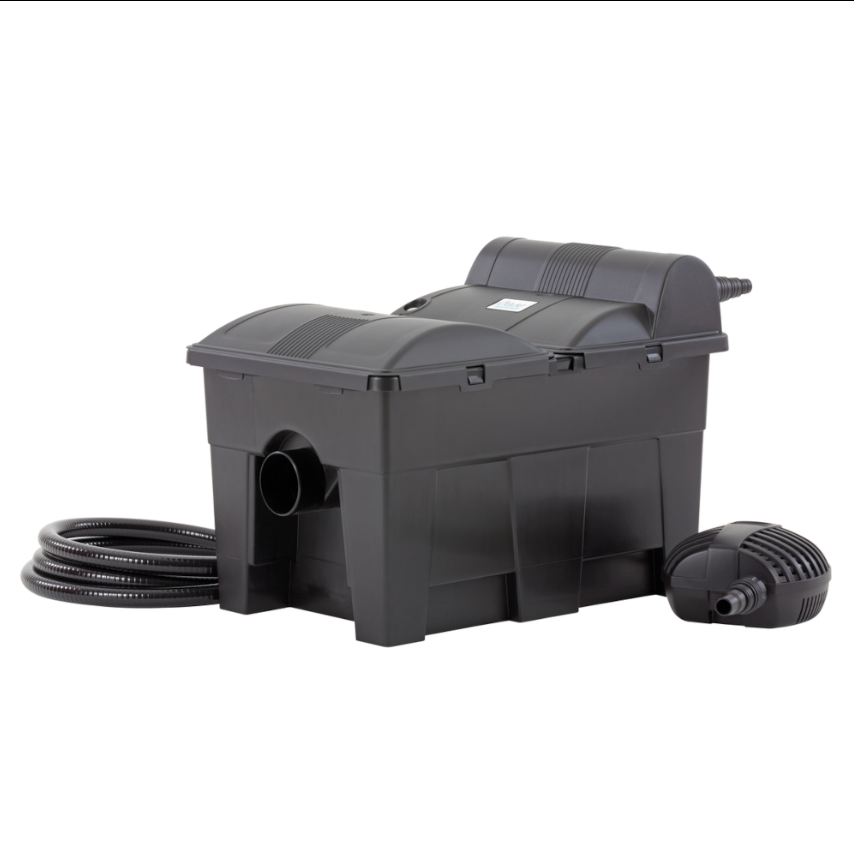

Powerful filter set for your pond up to 14 m³ (or 7 m³ with fish): The BioSmart Set 14000 flow-through filter set consists of an optimised 70 watt filter pump, which supplies the filter with water at 3400 l/h, the filter itself and the integrated 11 watt UVC pre-clarifier. Reliable, constant filter performance with minimal maintenance, as cleaning is simple and clean from the outside. You can get started straight away, as a 3 metre long hose is also included in the set. Strong OASE quality: You receive a 2-year guarantee plus a clear water guarantee.



Net weight	kg	8.50
Rated voltage		230 V / 50 Hz
Power consumption UVC	W	14
Power cable length UVC	m	3.00
Limited Warranty	Years	2
UVC power	W	11
Number of filter foams, total	Units	6
Number of blue filter foams	Units	3
Number of red filter foams	Units	3
Temperature display		Yes
Inlet connections	mm	19 / 25 / 32 / 38
Inlet connections		¾", 1", 1 ¼", 1 ½"
Outlet connections		DN 75
Connections, sludge discharge	mm	38
Sludge discharge connections		1 ½"
Corresponding filter/watercourse pump		Filter pump 3500
Power consumption pump	W	70
Max. flow rate	l/h	5500
Power cable length pump	m	10.00
Suitable for ponds up to max.	m3	14.0
Suitable for ponds with fish stock	m3	7.0
Suitable for ponds with koi	m3	3.5



Article number 50452
